產品名稱：A42F-16C液化石油氣安全閥
產品標簽：安全閥，液化石油氣安全閥
更新時間：2019/5/4 9:35:33
上一個產品： AHN42F-16C平行式安全回流閥
下一個產品：A41Y-160C彈簧微啟封閉式高壓安全閥
在線客服：
在線訂購：在線訂購
產品詳情
A42F-16C液化石油氣安全閥產品概述：
A42F型適用于工作溫度－29～+80℃ 的液化石油氣和類似非腐蝕性介質的設備和管路上。AH42F 型安全回流閥適用于液化石油氣罐泵出口的液相回流管道上，當設備或管路內壓力超過允許值時，閥門自動開啟，繼而全量排放，當壓力降低到規(guī)定值時，閥門自動關閉，保證設備安全運行。
 |
主要零部件材料
NO.
|
零件名稱
|
|
1
|
閥座
|
2Cr13
|
2
|
閥體
|
WCB
|
3
|
調節(jié)圈
|
2Cr13
|
4
|
反沖盤
|
2Cr13
|
5
|
閥瓣
|
2Cr13+PTFE
|
6
|
導向套
|
2Cr13
|
7
|
閥蓋
|
ZG230-450
|
8
|
彈簧
|
50CrVA
|
9
|
閥桿
|
2Cr13
|
10
|
調整螺桿
|
45
|
11
|
閥帽
|
ZG200-400
|

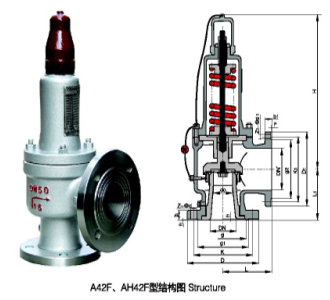

主要外形及連接尺寸
型號
|
公稱
通徑
|
do
|
D
|
K
|
g
|
g1
|
b
|
f
|
f1
|
Z-ød
|
DN'
|
D1
|
K1
|
g2
|
b1
|
f'
|
Z1-ød1
|
L
|
L1
|
≈H
|
AH42F-16C
A42F-16C |
20
|
15
|
105
|
75
|
55
|
16
|
2
|
4-14
|
25
|
115
|
85
|
65
|
16
|
2
|
4-14
|
110
|
95
|
378
|
||
25
|
16
|
115
|
85
|
65
|
16
|
2
|
4-14
|
32
|
140
|
100
|
78
|
18
|
2
|
4-18
|
110
|
95
|
378
|
|||
32
|
20
|
140
|
100
|
78
|
18
|
2
|
4-18
|
40
|
150
|
110
|
85
|
18
|
3
|
4-18
|
115
|
100
|
378
|
|||
40
|
25
|
150
|
110
|
85
|
18
|
3
|
4-18
|
50
|
165
|
125
|
100
|
20
|
3
|
4-18
|
120
|
110
|
406
|
|||
50
|
32
|
165
|
125
|
100
|
20
|
3
|
4-18
|
65
|
185
|
145
|
120
|
20
|
3
|
4-18
|
135
|
120
|
450
|
|||
65
|
40
|
185
|
145
|
120
|
20
|
3
|
4-18
|
80
|
200
|
160
|
135
|
20
|
3
|
8-18
|
160
|
140
|
520
|
|||
80
|
50
|
200
|
160
|
135
|
20
|
3
|
8-18
|
100
|
220
|
180
|
155
|
22
|
3
|
8-18
|
170
|
135
|
525
|
|||
100
|
65
|
220
|
180
|
155
|
22
|
3
|
8-18
|
125
|
250
|
210
|
185
|
22
|
3
|
8-18
|
195
|
175
|
690
|
|||
125
|
80
|
250
|
210
|
185
|
22
|
3
|
8-18
|
150
|
285
|
240
|
210
|
24
|
3
|
8-23
|
210
|
190
|
780
|
|||
150
|
100
|
285
|
240
|
210
|
24
|
3
|
8-23
|
175
|
310
|
270
|
240
|
26
|
3
|
8-23
|
255
|
230
|
838
|
|||
200
|
125
|
340
|
295
|
265
|
26
|
3
|
12-23
|
250
|
405
|
355
|
320
|
30
|
3
|
12-26
|
300
|
260
|
992
|
|||
250
|
150
|
405
|
355
|
320
|
30
|
3
|
12-26
|
300
|
460
|
410
|
375
|
30
|
4
|
12-26
|
350
|
320
|
1266
|
|||
300
|
220
|
460
|
410
|
375
|
30
|
4
|
12-26
|
400
|
580
|
525
|
485
|
36
|
4
|
16-30
|
370
|
350
|
1283
|
|||
350
|
250
|
520
|
470
|
435
|
34
|
4
|
16-26
|
500
|
715
|
650
|
608
|
44
|
4
|
20-34
|
500
|
450
|
1520
|
|||
400
|
280
|
580
|
525
|
485
|
36
|
4
|
16-30
|
500
|
715
|
650
|
608
|
44
|
4
|
20-34
|
500
|
450
|
1530
|
|||
AH42F-25
A42F-25 |
20
|
15
|
105
|
75
|
55
|
16
|
2
|
4-14
|
25
|
115
|
85
|
65
|
16
|
2
|
4-14
|
110
|
95
|
378
|
||
25
|
16
|
115
|
85
|
65
|
16
|
2
|
4-14
|
32
|
140
|
100
|
78
|
18
|
2
|
4-18
|
110
|
95
|
378
|
|||
32
|
20
|
140
|
100
|
78
|
18
|
2
|
4-18
|
40
|
150
|
110
|
85
|
18
|
3
|
4-18
|
115
|
100
|
378
|
|||
40
|
25
|
150
|
110
|
85
|
18
|
3
|
4-18
|
50
|
165
|
125
|
100
|
20
|
3
|
4-18
|
120
|
110
|
406
|
|||
50
|
32
|
165
|
125
|
100
|
20
|
3
|
4-18
|
65
|
185
|
145
|
120
|
20
|
3
|
4-18
|
135
|
120
|
450
|
|||
65
|
40
|
185
|
145
|
120
|
22
|
3
|
8-18
|
80
|
200
|
160
|
135
|
20
|
3
|
8-18
|
160
|
140
|
520
|
|||
80
|
50
|
200
|
160
|
135
|
22
|
3
|
8-18
|
100
|
220
|
180
|
155
|
22
|
3
|
8-18
|
170
|
135
|
525
|
|||
100
|
65
|
230
|
190
|
160
|
24
|
3
|
8-23
|
125
|
250
|
210
|
185
|
22
|
3
|
8-18
|
195
|
175
|
690
|
|||
125
|
80
|
270
|
220
|
188
|
28
|
3
|
8-26
|
150
|
285
|
240
|
210
|
24
|
3
|
8-23
|
210
|
190
|
780
|
|||
150
|
100
|
300
|
250
|
218
|
30
|
3
|
8-26
|
175
|
310
|
270
|
240
|
26
|
3
|
8-23
|
255
|
230
|
838
|
|||
200
|
125
|
360
|
310
|
278
|
34
|
3
|
12-26
|
250
|
405
|
355
|
320
|
30
|
3
|
12-26
|
300
|
260
|
992
|
|||
250
|
150
|
425
|
370
|
332
|
36
|
3
|
12-30
|
300
|
460
|
410
|
375
|
30
|
4
|
12-26
|
350
|
320
|
1266
|
|||
300
|
220
|
485
|
430
|
390
|
40
|
4
|
16-30
|
400
|
580
|
525
|
485
|
36
|
4
|
16-30
|
370
|
350
|
1283
|
型號
|
公稱通徑
|
do
|
D
|
K
|
g
|
g1
|
b
|
f
|
f1
|
Z-ød
|
DN'
|
D1
|
K1
|
g2
|
b1
|
f'
|
Z1-ød1
|
L
|
L1
|
≈H
|
AH42F-40
A42F-40 |
20
|
15
|
105
|
25
|
51
|
55
|
16
|
2
|
4
|
4-14
|
25
|
115
|
85
|
65
|
16
|
2
|
4-14
|
110
|
95
|
378
|
25
|
16
|
115
|
85
|
58
|
65
|
16
|
2
|
4
|
4-14
|
32
|
140
|
100
|
78
|
18
|
2
|
4-18
|
110
|
95
|
378
|
|
32
|
20
|
140
|
100
|
66
|
78
|
18
|
2
|
4
|
4-18
|
40
|
150
|
110
|
85
|
18
|
3
|
4-18
|
115
|
100
|
378
|
|
40
|
25
|
150
|
110
|
76
|
85
|
18
|
3
|
4
|
4-18
|
50
|
165
|
125
|
100
|
20
|
3
|
4-18
|
120
|
110
|
406
|
|
50
|
32
|
165
|
125
|
88
|
100
|
20
|
3
|
4
|
4-18
|
65
|
185
|
145
|
120
|
20
|
3
|
4-18
|
135
|
120
|
450
|
|
65
|
40
|
185
|
145
|
110
|
120
|
22
|
3
|
4
|
8-18
|
80
|
200
|
160
|
135
|
20
|
3
|
8-18
|
160
|
140
|
520
|
|
80
|
50
|
200
|
160
|
121
|
135
|
22
|
3
|
4
|
8-18
|
100
|
220
|
180
|
155
|
22
|
3
|
8-18
|
170
|
135
|
525
|
|
100
|
65
|
235
|
190
|
150
|
160
|
24
|
3
|
4.5
|
8-23
|
125
|
250
|
210
|
185
|
22
|
3
|
8-18
|
195
|
175
|
690
|
|
125
|
80
|
270
|
220
|
176
|
188
|
28
|
3
|
4.5
|
8-26
|
150
|
285
|
240
|
210
|
24
|
3
|
8-23
|
210
|
190
|
780
|
|
150
|
100
|
300
|
250
|
204
|
218
|
30
|
3
|
4.5
|
8-26
|
175
|
310
|
270
|
240
|
26
|
3
|
8-23
|
255
|
230
|
838
|
|
200
|
125
|
375
|
320
|
260
|
282
|
38
|
3
|
4.5
|
12-30
|
250
|
405
|
355
|
320
|
30
|
3
|
12-26
|
300
|
260
|
992
|
|
250
|
150
|
450
|
385
|
313
|
345
|
42
|
3
|
4.5
|
12-34
|
300
|
460
|
410
|
375
|
30
|
4
|
12-26
|
350
|
320
|
1266
|
注：以上的產品介紹，參數，圖片，數據僅用于參考，如果需更準確的資料請咨詢公司技術服務熱線：18117208829
